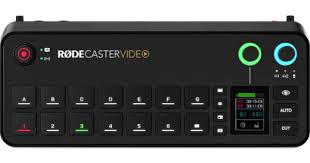

RODE Caster Video All-in-One Production Console

USB 1:

2-in/2-out or multichannel (20-in) output

USB 1 Chat (uses USB 1 port):

2-in/2-out with mix-minus

USB 2:

2-in/2-out with MFi support

USB 4 & 5:

compatible with RØDE USB microphones and RØDECaster Pro II and Duo

2 headphone outputs (1/4-inch)

2 balanced line outputs (1/4-inch, L/R)

20 possible audio sources (9 stereo channels simultaneously): combo 1 and 2 (can be combined for stereo), wireless 1 and 2, video clips, sounds, HDMI 1, 2, 3 and 4 (each can be split for two mono), Bluetooth,3 USB audio interfaces (computers), 2 hosting USB audio devices (microphones)

12 Outputs with Custom Routing: live mix, headphone 1, headphone 2, recording, monitors, USB Main, USB Chat, USB 1, 2, 4 and 5, Bluetooth

Note: Each output can be independently configured with custom level, mute status and level offset settings for each of the 9 inputs

APHEX® VoxLab™ Processing: per channel

Advanced APHEX® granular processing on each channel: Compressor, Equaliser (EQ), De-esser, Panning, Noise Gate, High-pass Filter, Aural Exciter™, Big Bottom™

Frequency range: 20Hz – 20kHz

Input gain: up to 76dB Input

Equivalent Input Noise:

-131.5dBV (A-weighted)
